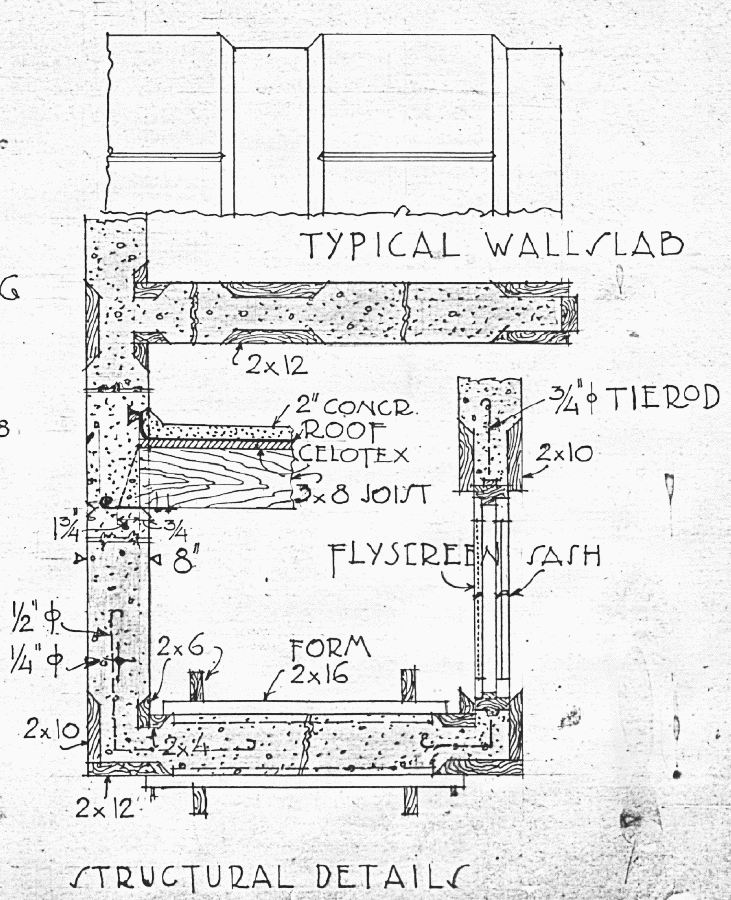

Typical Structural Details
Note: Schindler developed a limited number of connections - creating a set of typical details. Drawn not to scale and not completely accurate, this image was meant to describe the methodology behind detailing rather than simply depicting each and every connection. When specific changes were made to enclose the roof patio framing details became more specific as shown below.
