Diaphragms

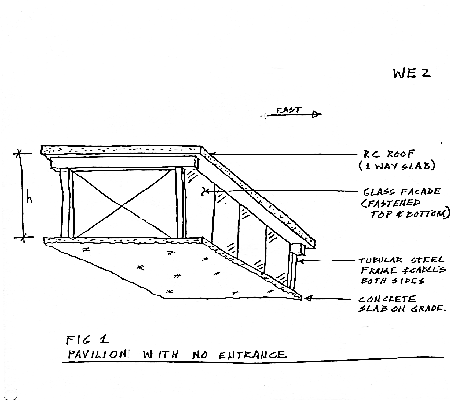

3.1 Pavilion With No Entrance
3.2 Exploded FBD - Wind from East
3.3 Roof Acts As A Beam
3.4 Deflections
3.5 Platform Frame
Construction Example
Other Examples
-

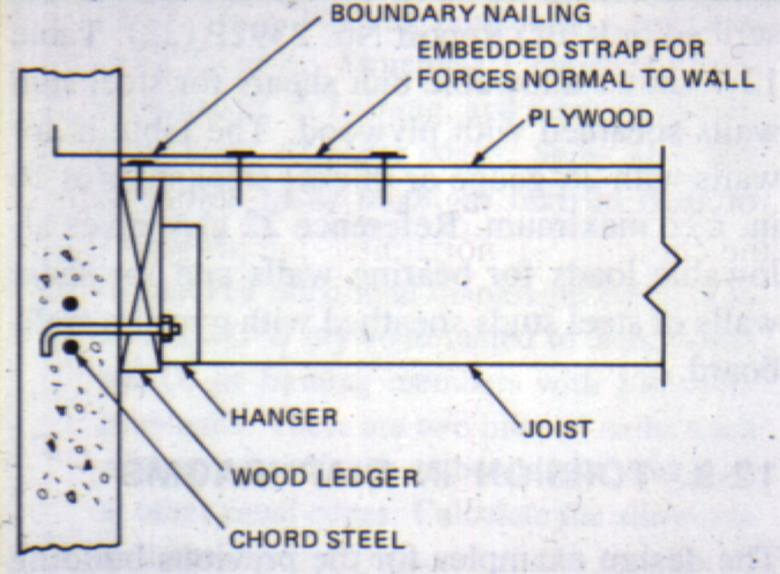

Concrete Wall Joint Section
-

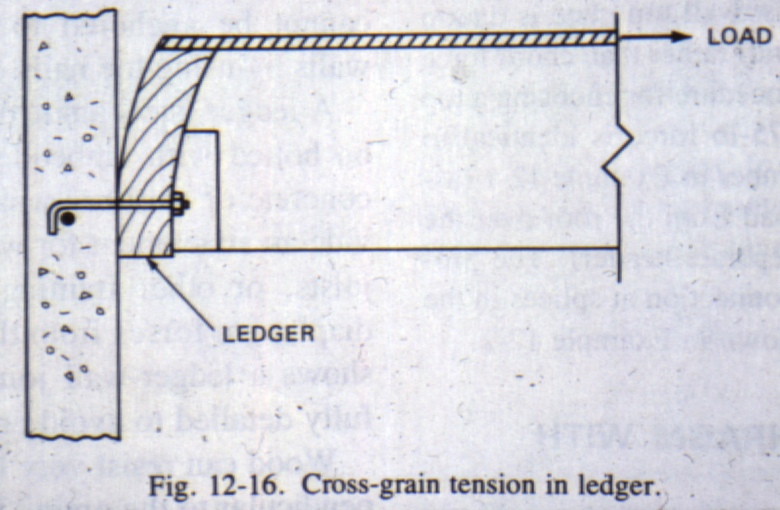

Cross Grain Tensioning Lodger Section
-

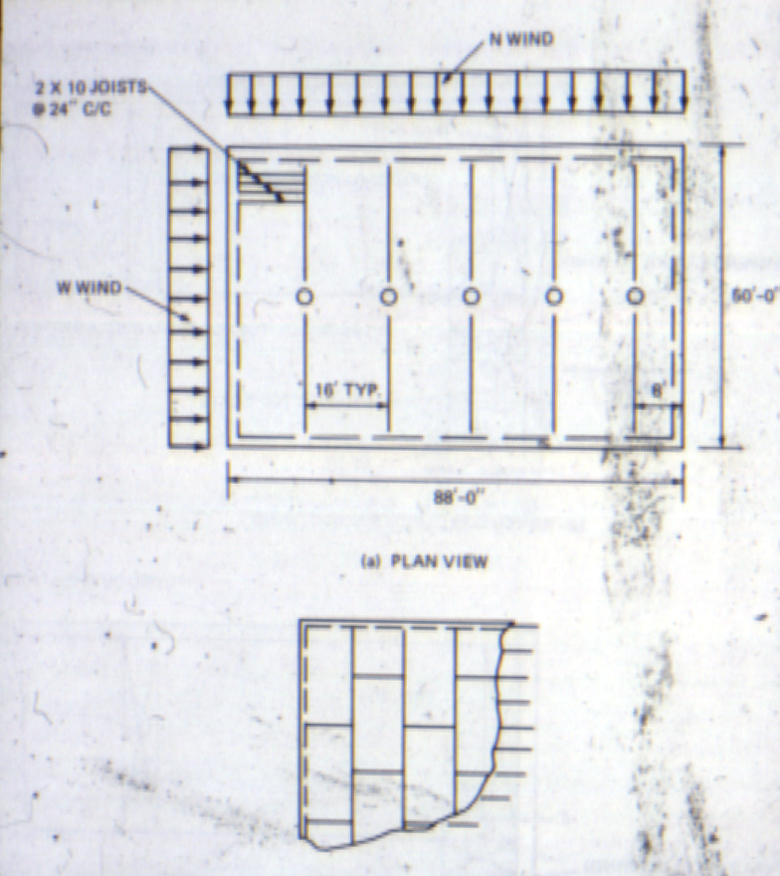

Diaphragm Plan
